| ZR（ZL）シリーズ | 単相・複巻・A種絶縁・ラグ端子仕様 | 1VA〜300VA |
| ZRのリード線引出し仕様 多種・多様の線種、コネクタなど。貴社仕様にて製作します。 |
|

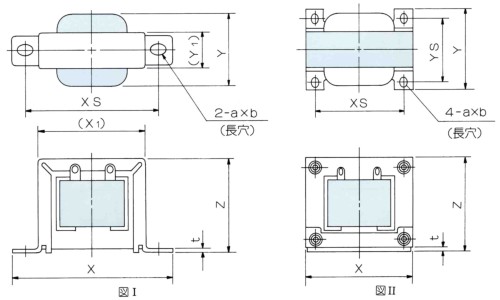

| 型 名 | 容 量 | 形 状 | 外 形 寸 法 | 取 付 寸 法 | 重
量 約 |
図 | ||||||||
| X | Y | Z | X1 | Y1 | XS | YS | aXb | t | ||||||
| ZR- | 1VA | BR | 52 | (28) | 32 | (36) | (12) | 44 | - | 3.2X5 | 0.5 | 0.1kg | 図 Ｉ | |
| ZR- | 2.5VA | BR | 60 | (32) | 36 | (43) | (16) | 50 | - | 3.5X5 | 0.6 | 0.15kg | ||
| ZR- | 5VA | BR | 60 | (45) | 36 | (43) | (22) | 50 | - | 3.5X5 | 0.5 | 0.25kg | ||
| ZR- | 7.5VA | BR | 71 | (45) | 43 | (50) | (22) | 60 | - | 4X6 | 0.8 | 0.3kg | ||
| ZR- | 10VA | BR | 71 | (48) | 43 | (50) | (27) | 60 | - | 4.5X6 | 0.6 | 0.4kg | ||
| ZR- | 15VA | BR | 82 | (48) | 51 | (59) | (27) | 71 | - | 4.5X6 | 0.8 | 0.55kg | ||
| ZR- | 20VA | BR | 84 | (47) | 53 | (63) | (27) | 73 | - | 4.5X6 | 0.8 | 0.6kg | ||
| ZR- | 30VA | BR | 90 | (53) | 59 | (69) | (30) | 80 | - | 4.5X6 | 0.8 | 0.8kg | ||
| ZR- | 50VA | BR | 104 | (70) | 68 | (79) | (33) | 93 | - | 4.5X6 | 1.2 | 1.1kg | ||
| ZR- | 75VA | BR | 104 | (80) | 68 | (79) | (43) | 93 | - | 4.5X6 | 1.2 | 1.5kg | ||
| ZR- | 100VA | AR | 86 | (81) | 73 | - | - | 75 | 68 | 5X7 | 1.6 | 1.9kg | 図 ＩＩ | |
| ZR- | 150VA | AR | 86 | (91) | 73 | - | - | 75 | 78 | 5X7 | 1.6 | 2.4kg | ||
| ZR- | 200VA | AR | 108 | (101) | 92 | - | - | 92 | 86 | 7X9 | 2.0 | 3.6kg | ||
| ZR- | 250VA | AR | 108 | (111) | 92 | - | - | 92 | 96 | 7X9 | 2.0 | 4.3kg | ||
| ZR- | 300VA | AR | 114 | (114) | 99 | - | - | 96 | 90 | 6X8 | 1.6 | 4.8kg | ||
